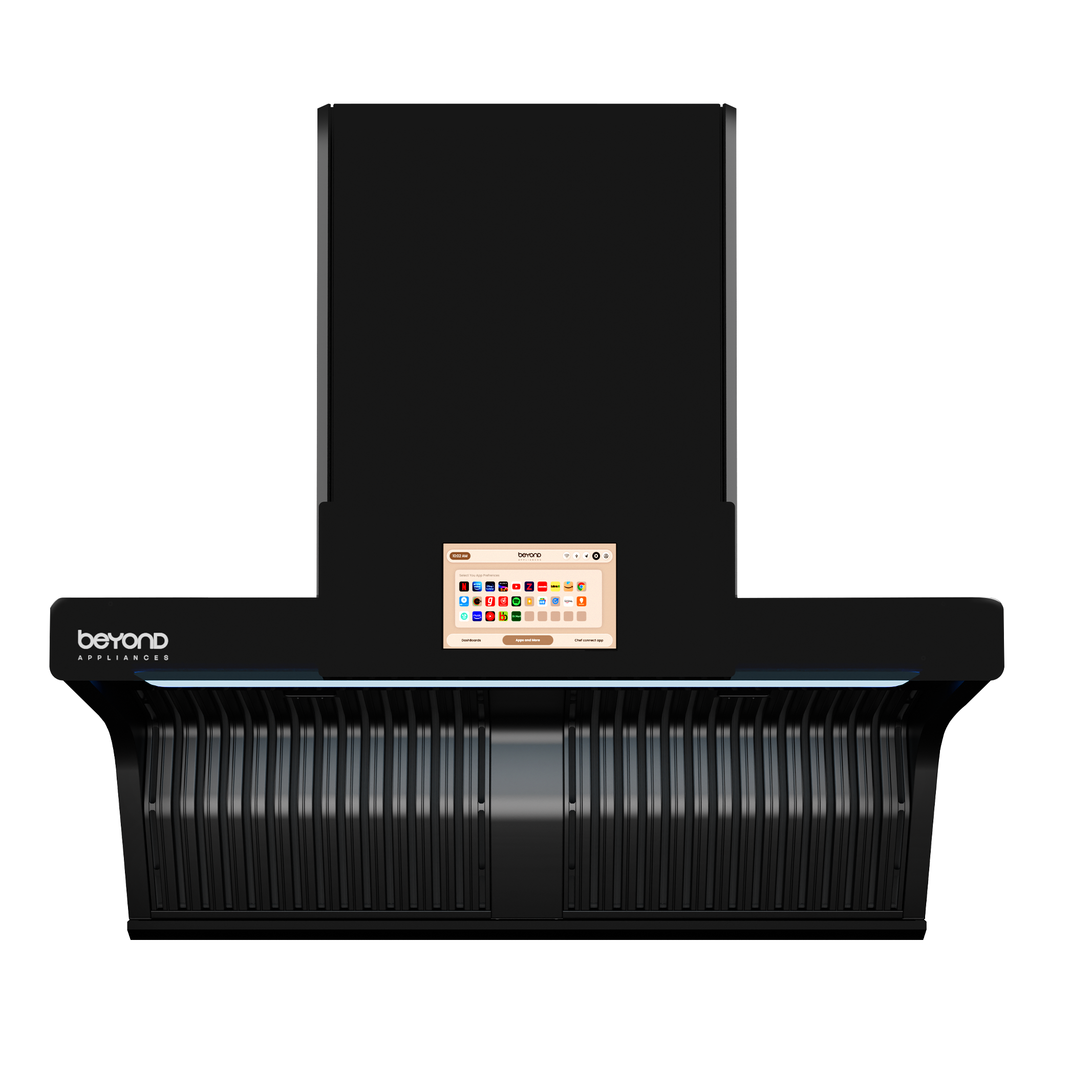

Beyond Orion 90cm smart kitchen chimney front view
Beyond Orion 90 kitchen chimney dimensions and installation view
Beyond Orion 90 chimney 1600 CMH 3D suction feature
Beyond Orion 90 chimney auto clean feature
Beyond Orion 90cm smart kitchen chimney front view
Beyond Orion 90 kitchen chimney dimensions and installation view
Beyond Orion 90 chimney 1600 CMH 3D suction feature
Beyond Orion 90 chimney auto clean feature

Beyond Appliances Orion 90cm Android Kitchen Chimney | 1600 CMH 3D Suction | Smart Display | Auto Clean

Rs. 27,790.00
Rs. 37,990.00
-27%

Estimate delivery times: 1-5 days.

Use COD & extra 1-2% extra UPI Discount at checkout.

Contact for Huge Credit Card Cashbacks (utpo 15000) & EMI Offers

Ask a question

Description

Shipping info

Return Policies

Pairs well with

BEYOND / ORION PERFORMANCE SERIES

Orion 90

1600 CMH
3D SUCTION

90 cm smart chimney engineered around 1600 CMH 3D suction, three selectable airflow levels, auto clean and a connected display hub.
Orion 90
011600 CMHMaximum 3D suction
023 Speeds800 / 1200 / 1600 CMH
0363 dBRated noise level
043-Level LEDDimmable cooktop lighting

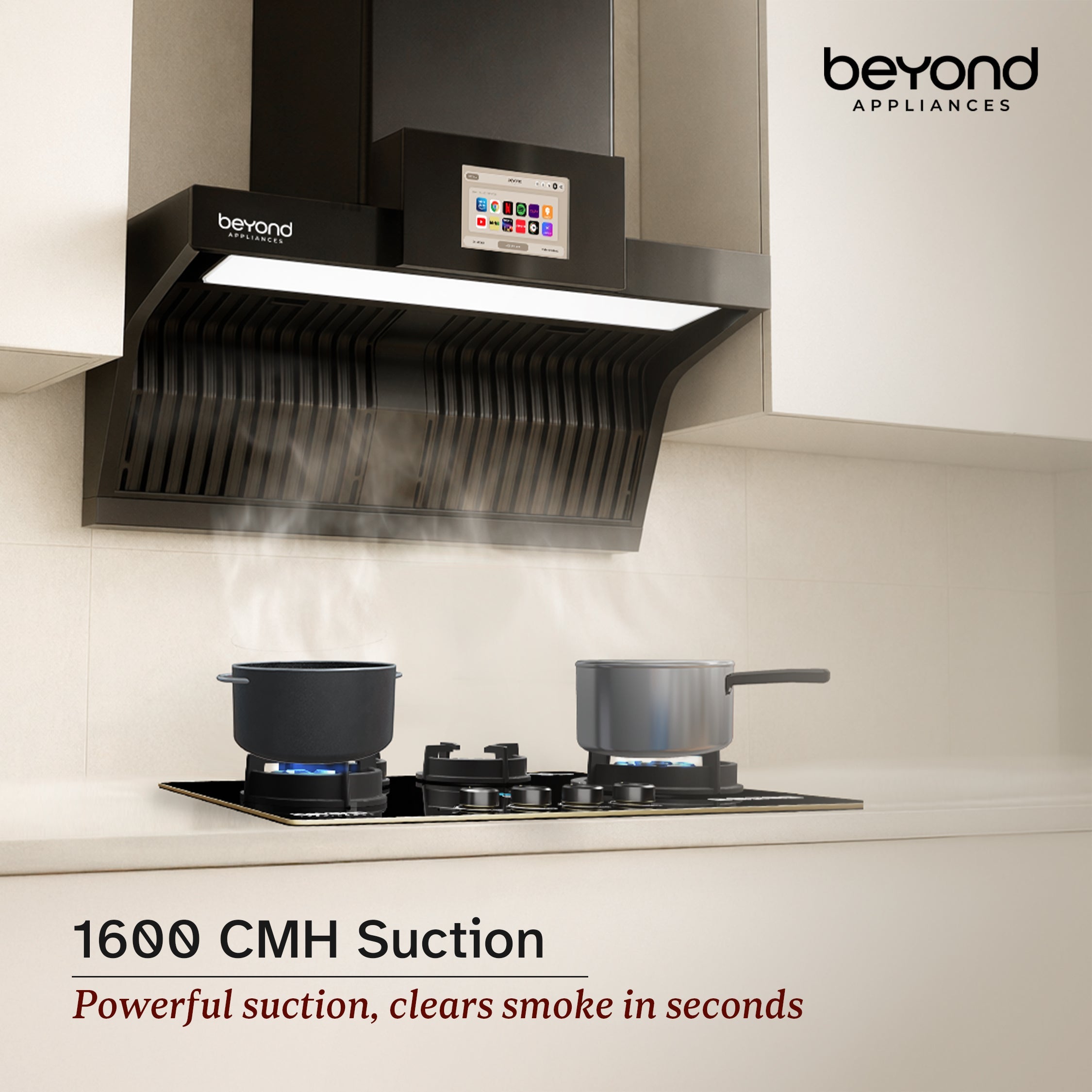

3D Suction, Tuned to the Cooking

AIRFLOW ENGINEERING

3D Suction, Tuned to the Cooking

Three airflow levels let you step from 800 to 1200 to 1600 CMH, while 3D suction is designed to draw smoke and odours across the cooking zone rather than relying on a single narrow intake path.
80012001600CMH

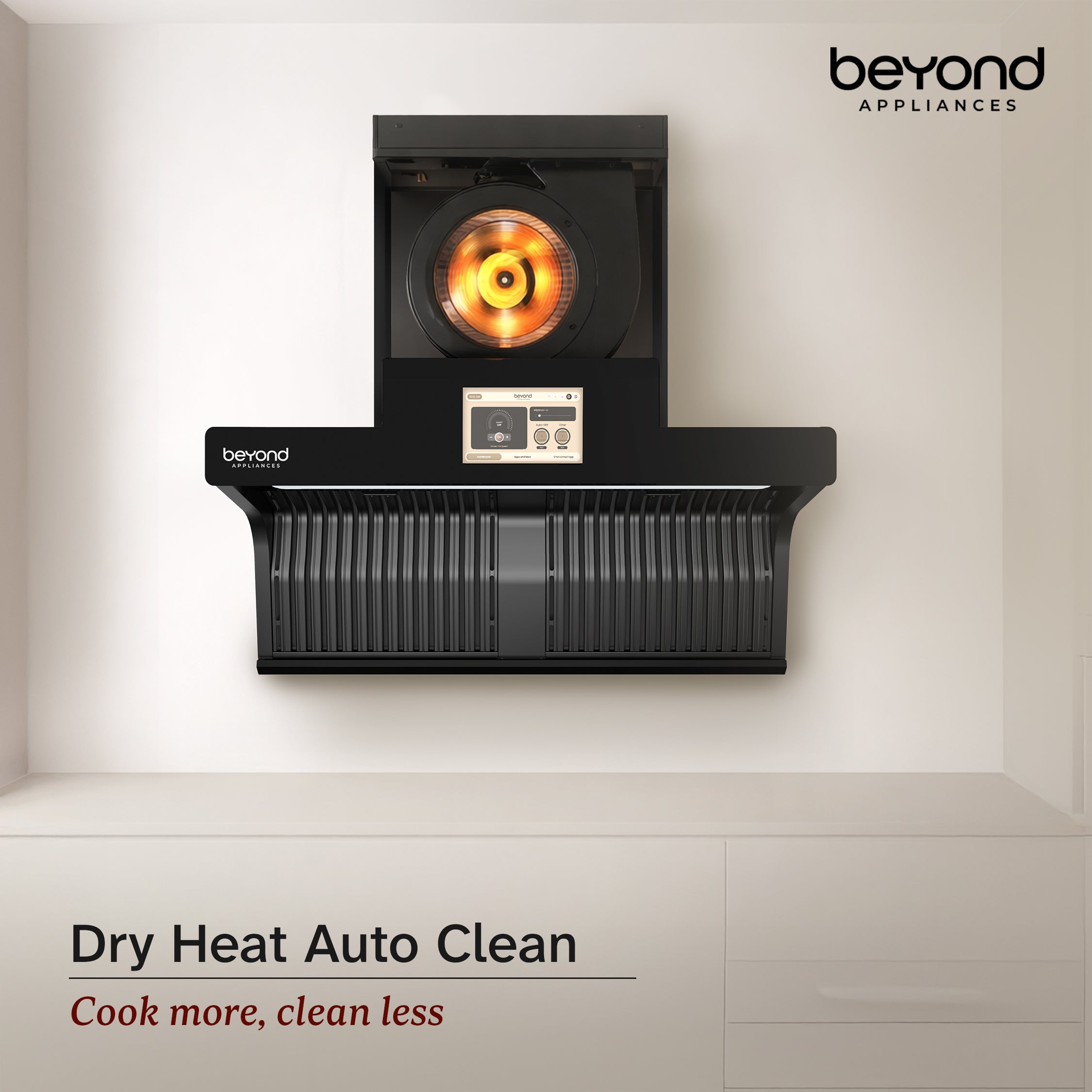

MAINTENANCE SYSTEM

Auto Clean + Nano-Coated Motor

A nano-coated motor and auto-clean system are designed to reduce grease buildup around the extraction system. Collected residue drains toward the oil collector, helping simplify routine maintenance.
250 W motor powerAuto Clean grease managementOil Collector simplified upkeep
Auto Clean + Nano-Coated Motor

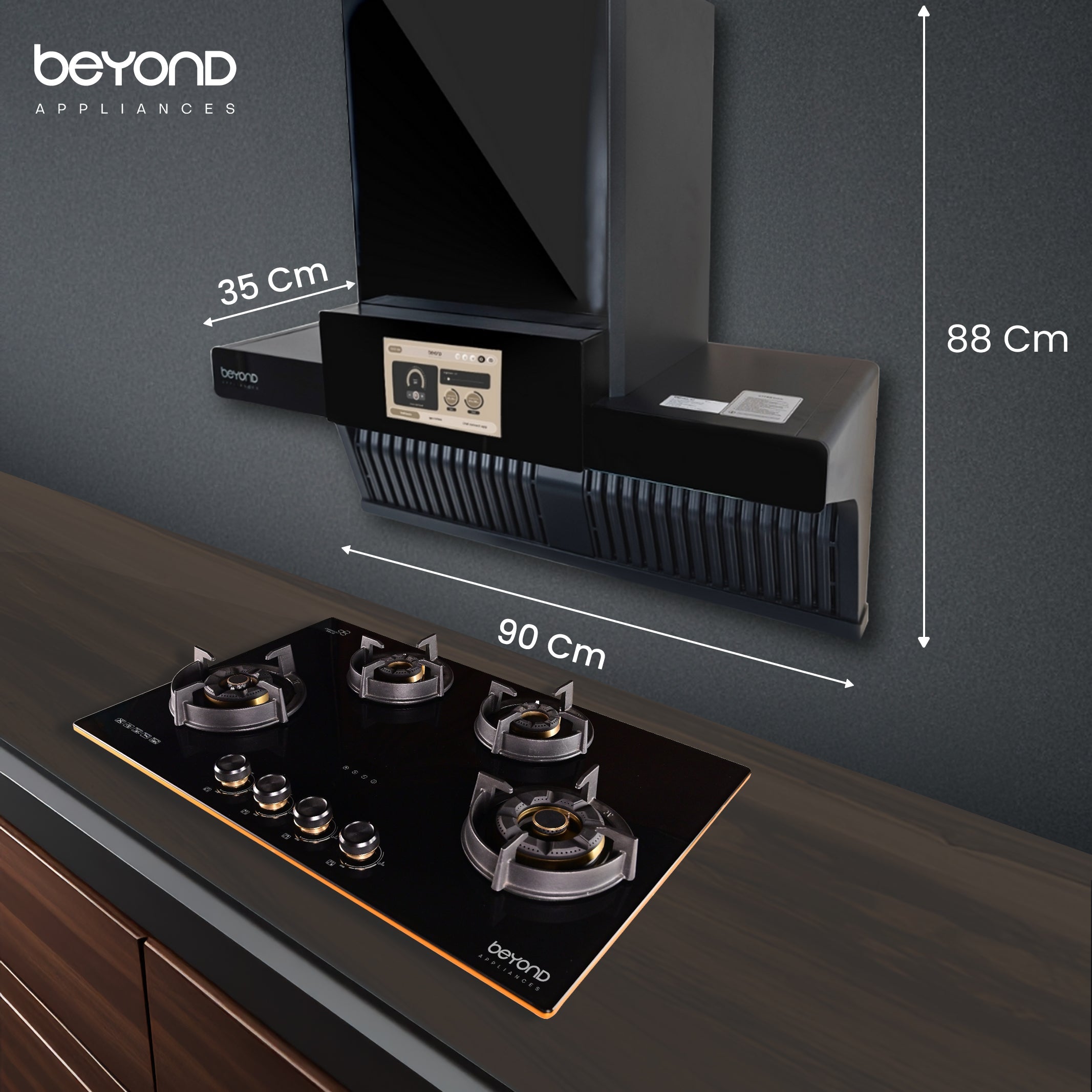

Orion 90 dimensions and installation

INSTALLATION PLANNING

Built around a 90 cm cooking zone

Orion 90 measures 90 × 88 × 38 cm (W × H × D) and weighs 29.5 kg. It is designed for wall mounting with a 7-inch duct connection. Confirm wall width, duct route, electrical point and cooktop clearance before installation.
Width
90 cm
Depth
38 cm
Height
88 cm
Duct
7 inch

ORION 90 / TECHNICAL DATA

Specification sheet

BrandBeyond Appliances
ModelOrion 90
Model NumberBASC-OA90-KE-001
Product TypeSmart Auto-Clean Kitchen Chimney
Width90 cm
Dimensions90 × 88 × 38 cm (W × H × D)
Weight29.5 kg
Suction1600 CMH, 3D suction
Fan Levels800 / 1200 / 1600 CMH
MotorNano-coated, 250 W
Rated Power276 W
Noise Level63 dB
Lighting3-level dimmable LED
Duct Size7 inch
Power Supply230 V, 50 Hz, single phase
Power Cord1.5 m
Mounting TypeWall mount
Smart FeaturesSmart Display Hub + dual speakers
BEYOND APPLIANCESWarranty & installation support
Manufacturer warranty and installation support apply as per Beyond Appliances terms for Orion 90. Confirm the latest warranty coverage, installation scope and site-readiness requirements at the time of purchase.
